Grundfos CRIE15-03 AN-FGJ-I-E-HQQE 3x380-500 60 H
Product ID: 99071566

CRIE 15-3 AN-FGJ-I-E-HQQE

垂直, multistage centrifugal pump with suction and discharge ports on same the level (in-line) enabling installation in a horizontal one-pipe system. Pump materials in contact with the liquid are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling and easy service and access. Power transmission is via a rigid split coupling. Pipework connection is via combined DIN-ANSI-JIS flanges.

The pump is fitted with a 3-phase, fan-cooled, permanent-magnet, synchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement. A control panel on the motor terminal box enables setting of required setpoint as well as setting of pump to "Min." or "Max." operation or to "Stop". The Grundfos Eye indicator on the control panel provides visual indication of pump status:

"Power on": Motor is running (rotating green indicator lights) or not running (permanently green indicator lights)
"Warning": Motor is still running (rotating yellow indicator lights) or has stopped (permanently yellow indicator lights)
"Alarm": Motor has stopped (flashing red indicator lights).

Communication with the pump is possible by means of the Grundfos GO Remote (accessory). The remote control enables further settings as well as reading out of a number of parameters such as "Actual value", "Speed", "Power input" and total "Power consumption".

The terminal box has a number of inputs and outputs enabling the motor to be used in advanced applications where many inputs and outputs are required:

two dedicated digital inputs
three analog inputs, 0(4)-20 mA, 0-5 V, 0-10 V, 0.5 - 3.5 V; the factory-fitted pressure sensor is connected to one of these inputs
5 V voltage supply to potentiometer and sensor
one analog output, 0-10 V, 0(4)-20 mA
两个configurable digital inputs or open-collector outputs
two Pt100/Pt1000 inputs
LiqTec, dry-running protection sensor input
Grundfos Digital Sensor input and output
24 V voltage supply for sensors
two signal relay outputs (potential-free contacts)
GENIbus connection
interface for Grundfos CIM fieldbus module.

Grundfos CRIE15-03 AN-FGJ-I-E-HQQE 3x380-500 60 H

Order information

Download PDF

Specifications

Liquid:
Pumped liquid:		水
Liquid temperature range:		-20 .. 120 °C
Liquid temperature during operation:		20 °C
Density:		998.2 kg/m³

Technical:
Speed for pump data:		3520 rpm
Rated flow:		20.5 m³/h
Rated head:		47.9 m
Pump orientation:		垂直
Shaft seal arrangement:		Single
Code for shaft seal:		HQQE
Approvals on nameplate:		CE, EAC,ACS
Curve tolerance:		ISO9906:2012 3B

Materials:
Base:		Stainless steel
		EN 1.4408
		AISI 316
Impeller:		Stainless steel
		EN 1.4301
		AISI 304
Bearing:		SIC

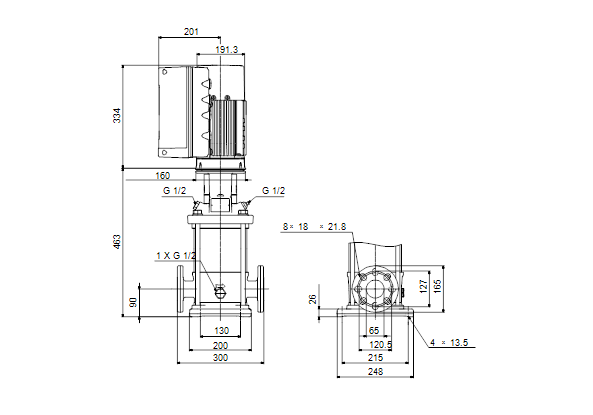

Installation:
Maximum ambient temperature:		50 °C
Maximum operating pressure:		16 bar
Max pressure at stated temp:		16 bar / 120 °C
		16 bar / -20 °C
Type of connection:		DIN / ANSI / JIS
Size of inlet connection:		DN 50
		2 inch
Size of outlet connection:		DN 50
		2 inch
Pressure rating for pipe connection:		PN 25
Flange rating inlet:		300 lb
Flange size for motor:		FT130

Electrical data:
Motor standard:		IEC
Motor type:		112MC
IE Efficiency class:		IE5
Rated power - P2:		4 kW
Power (P2) required by pump:		4 kW
Mains frequency:		50 Hz
Rated voltage:		3 x 380-500 V
Rated current:		7,60-6,20 A
Cosφ-功率因数:		0,92-0,87
Rated speed:		360-4000 rpm
Efficiency:		92,2%
Motor efficiency at full load:		92.2 %
Enclosure class (IEC 34-5):		IP55
绝缘等级(IEC 85):		F

Controls:
Frequency converter:		Built-in
Pressure sensor:		Y

Others:
Minimum efficiency index, MEI ≥:		0.70
Net weight:		59 kg
Gross weight:		87 kg
Shipping volume:		0.37 m³
