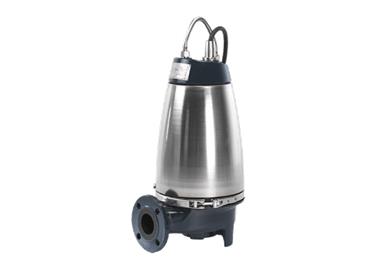

Grundfos SE1.80.100.22.Ex.4.50E.B |

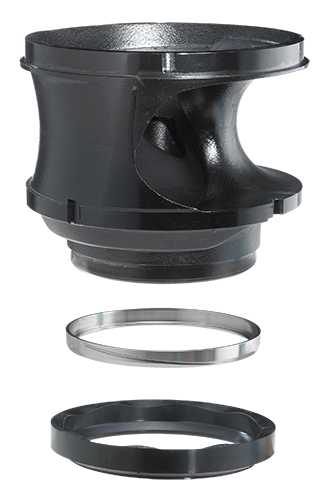

Non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage. The pump is designed for intermittent and continous operation. The liquidless and maintenance free cooling system ensures that the pump can be used for submerged or dry installation. The revolutionary S-tube® impeller provides free spherical passage of solids up to 80 mm and is suitable for wastewater with a dry matter content of up to 3 %. A unique stainless-steel clamp assembling system enables quick and easy disassembly of the pump from the motor unit for service and inspection. No special tools are required. Pipework connection is via a DIN flange. The pump is explosion-proof.
Specifications
| Controls: | ||
| Moisture sensor: | without moisture sensors | |
| Water-in-oil sensor: | without water-in-oil sensor | |
| Temp. sensor: | N | |
| Liquid: | ||
| Liquid temperature range: | 0 .. 40 °C | |
| Density: | 998.2 kg/m³ | |
| Technical: | ||
| Type of impeller: | S-TUBE | |
| Maximum particle size: | 80 mm | |

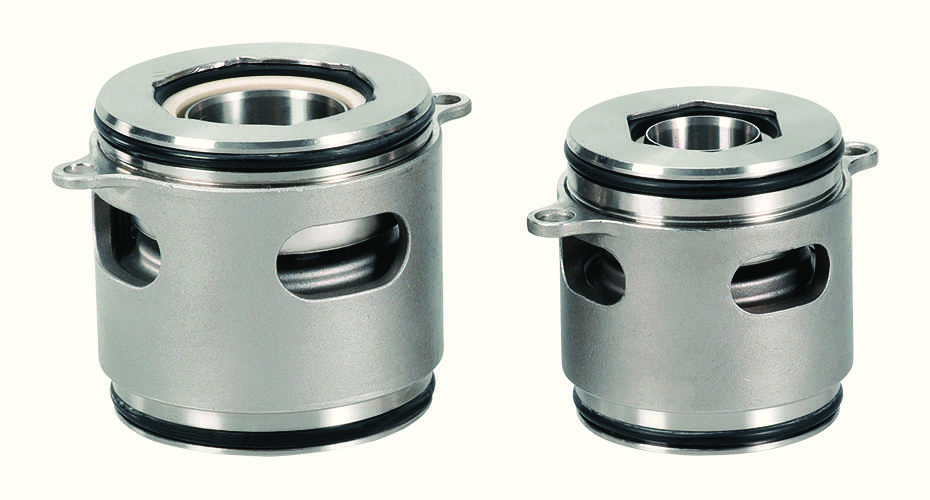

| Primary shaft seal: | SIC/SIC | |
| Secondary shaft seal: | CARBON/CERAMICS | |
| Max. hydraulic efficiency: | 72 % | |
| Approvals on nameplate: | EN12050-1 | |
| Curve tolerance: | ISO9906:2012 3B2 | |
| Materials: | ||
| Pump housing: | EN 1561 EN-GJL-250 | |
| Impeller: | Cast iron | |
| Installation: | ||
| Maximum operating pressure: | 6 bar | |
| Flange standard: | DIN | |
| Pump outlet: | DN 100 | |
| Pressure rating: | PN 10 | |
| Maximum installation depth: | 20 m | |
| Electrical data: | ||
| Power input - P1: | 2.9 kW | |
| Rated power - P2: | 2.2 kW | |
| Mains frequency: | 50 Hz | |
| Rated voltage: | 3 x 220-240 V | |
| 电压公差: | +6/-10 % | |
| Max starts per. hour: | 20 | |
| Rated current: | 10,3-10,3 A | |
| Rated current at 3/4 load: | 8.3 A | |
| Rated current at 1/2 load: | 7.3 A | |
| Starting current: | 55 A | |
| Rated current at no load: | 6.2 A | |
| Cosφ-功率因数: | 0,74 | |
| Cos phi - p.f. at no load: | 0,13 | |
| Cos phi - p.f. at 3/4 load: | 0,66 | |
| Cos phi - p.f. at 1/2 load: | 0,53 | |
| Rated speed: | 1445 rpm | |
| Locked-rotor torque: | 32 Nm | |
| Breakdown torque: | 45 Nm | |
| Moment of inertia: | 0.066 kg m² | |
| Motor efficiency at full load: | 76.3 % | |
| Motor efficiency at 3/4 load: | 75.2 % | |
| Motor efficiency at 1/2 load: | 70.9 % | |
| Number of poles: | 4 | |
| Start. method: | direct-on-line | |
| Enclosure class (IEC 34-5): | IP68 | |
| Insulation class (IEC 85): | F | |
| Explosion proof: | yes | |
| Ex-protection standard: | Ex cd IIB T4,T3 | |
| Length of cable: | 10 m | |
| Cable type: | LYNIFLEX | |
| Type of cable plug: | NO PLUG | |
| Others: | ||
| Net weight: | 110 kg | |
|
